Primary Folding Air Filter

Scope of application

It is mainly used for the comfort air conditioning system with low pre-filtration and purification requirements in the air conditioning system of relatively clean places, such as the cabinet air conditioning unit with limited places, the home central air conditioner and the local air supply system with not strict purification requirements, including the fields of food, electroplating, chemical industry, textile, dye, light industry, metallurgy, petroleum, pharmacy and the like

Product advantage

• Simple structure and low price;
• Made of high quality shell, light weight, strong endurance;
• Large air volume, high dust capacity and high efficiency;
• Good dust catch effect, compact structure and difficult deformation;
• High-quality filter material is adopted, with the filtration efficiency reaching G4 (90%);
• Commonly used in food, electroplating, chemical industry, textile, dyes, light industry and other applications;

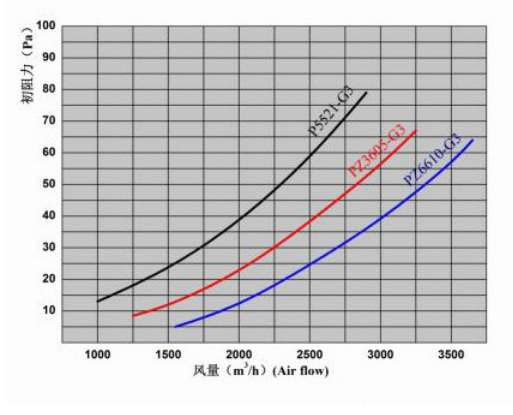

Air volume and resistance diagram

Product Parameters

Product Features

The outer frame of the filter is composed of a solid waterproof board, used to fix the folded filter material. The design of diagonal line on the outer frame can provide large filtration area and make the internal filtration material tightly adhere to the outer frame. . .

Product Description: First-effect folding air filter is suitable for primary filtration of air-conditioning system, mainly used to filter dust particles above 5 μ m. The primary filter has three styles of plate type, folding type and bag type. The outer frame material includes paper frame, aluminum profile frame and galvanized plate frame. The filter material includes non-woven fabric, nylon net, activated carbon filter material, metal hole net, aluminum rolled net, etc.

Product features: cheap, light weight, good versatility, compact structure.

Product selling point: replaceable filter material. Users can conveniently replace the filter media by themselves, which can save the cost of spare parts for users and reduce the troubles of transportation and storage.

Main application: the primary filtration of a common air-conditioning and ventilation system is also suitable for simple air-conditioning and ventilation system with only one-stage filtration.

Frame material: paper frame, aluminum profile frame, galvanized sheet frame.

Sealant: polyurethane adhesive.

Use filter material: non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, aluminum rolling mesh.

Divider: hot melt adhesive

Features: The outer frame of the filter is made of solid waterproof board, which is used to fix the folded filter material. The design of diagonal line on the outer frame can provide large filtration area and make the internal filtration material tightly adhere to the outer frame. Special professional bonding glue is used around the filter to bond with the outer frame, which can prevent air leakage or damage caused by wind resistance pressure. 　　

Efficiency: G3, G4

Service environment: normal temperature and pressure

Weatherstrip: neoprene

Application examples: pre-filtration of central air-conditioning and central ventilation system; Large air compressor pre-filtration; Pre-filtration of clean return air system and local high-efficiency filtering device.
